In modern electronic systems, protecting circuits from electrical faults like overcurrent, short circuits, and overheating is very important. Even a small fault can damage expensive components and stop the entire system.
Traditionally, conventional fuses were used for protection. But today’s advanced electronics need smarter, faster, and more reliable solutions. This is where the eFuse (electronic fuse) comes in. It is a modern protection device designed for intelligent circuit safety in PCB-based systems.
What is an eFuse?
An eFuse (electronic fuse) is a semiconductor-based protection device used in electronic circuits to protect against overcurrent, short circuits, and abnormal voltage conditions.
Unlike traditional fuses that physically blow, an eFuse works electronically. It monitors current flow and automatically disconnects or limits the power when a fault is detected. After the issue is resolved, it can reset and start working again.
Why eFuse is Important?
eFuse is important in modern electronics because systems are becoming smaller, faster, and more sensitive.
|
Benefit
|
Description
|
|
Component Protection
|
Prevents damage to sensitive ICs and components
|
|
System Reliability
|
Reduces chances of complete system failure
|
|
No Replacement Needed
|
Eliminates manual fuse replacement
|
|
Smart Protection
|
Works automatically without human intervention
|
How eFuse Works?
An eFuse (electronic fuse) is a smart circuit protection device designed to monitor electrical conditions in real time and protect electronic systems from faults such as overcurrent, short circuits, overheating, and abnormal voltage conditions.
Unlike a conventional fuse that permanently breaks the circuit, an eFuse uses electronic control, sensing, and switching techniques to respond quickly and safely to electrical faults without physical damage.
1. Continuous Current Monitoring
The eFuse continuously monitors the load current flowing through the power path using an internal sensing method. This allows the device to track real-time current changes and detect abnormal conditions immediately.
-
A precision sense resistor (shunt-based sensing), or
-
Integrated current sensing circuitry
2. Fault Detection Using Threshold Control
Inside the eFuse, a predefined current limit is set. The device continuously compares the measured current with this limit. This comparison is handled by internal control logic for fast and accurate response.
-
If the current is within safe range - normal operation continues
-
If the current exceeds the defined threshold - fault condition is detected
3. Fast Protection Response (Current Limiting or Shutdown)
When a fault is detected, the eFuse reacts instantly. The response time is very fast, helping protect sensitive electronic circuits from sudden electrical stress.
-
internal power MOSFET switching stage is turned OFF or limited
-
Current flow is either completely stopped or restricted to a safe level
-
This prevents damage to downstream components such as ICs, sensors, and PCB traces
4. Fault Recovery and Reset Behavior
After the fault condition is cleared, the eFuse can resume normal operation depending on its configuration:
-
Automatic retry mode: The device attempts to restore power after a short delay
-
Latch-off mode: The device remains OFF until it is manually or digitally reset
5. Built-In Protection Functions
-
Modern eFuses often include multiple protection features within a single device:
|
Protection Feature
|
Function
|
|
Overvoltage Protection
|
Protects circuit from high voltage spikes
|
|
Thermal Protection
|
Shuts down device when temperature exceeds safe limits
|
|
Reverse Current Protection
|
Prevents reverse current flow in the circuit
|
|
Programmable Current Limit
|
Allows setting custom current thresholds
|
|
Soft Start Control
|
Reduces inrush current during power-up
|
6. System-Level Working Concept
At the system level, an eFuse acts as an intelligent power gatekeeper. It continuously manages power flow and ensures that only safe electrical conditions are allowed to pass through the circuit.
-
Circuit safety
-
Device reliability
-
Overall system stability

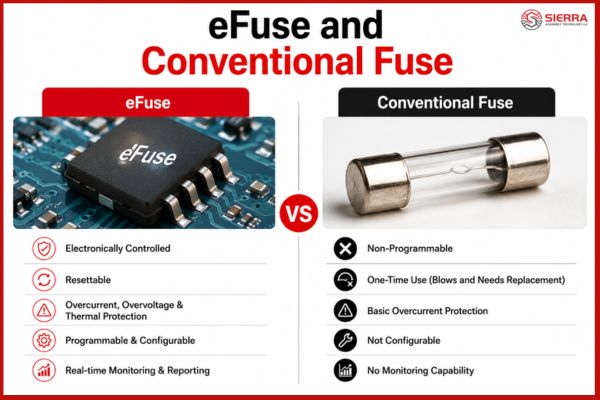

Comparison eFuse vs Conventional Fuse
|
Feature
|
eFuse
|
Conventional Fuse
|
|
Technology
|
Electronic (IC-based)
|
Physical wire element
|
|
Operation
|
Automatic control
|
Physical melting
|
|
Resetting
|
Resettable
|
One-time use
|
|
Response Time
|
Very fast
|
Moderate
|
|
Maintenance
|
No replacement needed
|
Requires replacement
|
|
Protection Type
|
Multi-layer protection
|
Only overcurrent protection
|
Advantages of eFuse Over Conventional Fuses
-
Automatic reset after fault clearance
-
Faster response to electrical faults
-
High accuracy in current control
-
Multiple protection features in one device
-
Space-saving PCB design
-
Better system safety and reliability
-
Reduces maintenance cost and downtime
Limitations of eFuse
-
Higher cost compared to traditional fuses
-
Requires power supply to operate
-
Slightly complex circuit design
-
Not always suitable for very high-power applications
Industry Use Case: Problem and Solution
Problem
An industrial IoT sensor node operating in a noisy electrical environment was experiencing repeated overcurrent events and transient inrush currents during power cycling. The system used a conventional fuse (fixed current rating) for protection.
-
Frequent nuisance fuse blowing due to inrush current peaks
-
No distinction between transient surge and actual fault current
-
Resulting in repeated field failures and system downtime
-
Manual fuse replacement required for restoration, increasing maintenance cost
Solution
The design was upgraded by replacing the conventional fuse with a programmable eFuse IC integrated into the power distribution path.
Key implementation features:
-
Configured programmable current limit threshold to allow normal inrush while blocking fault conditions
-
Enabled fast electronic cutoff response using internal MOSFET switch control
-
Integrated thermal shutdown protection for overtemperature conditions
-
Added soft-start (inrush current control) to stabilize power-up sequence
-
Implemented auto-retry / latch-off mode depending on fault severity
Result
-
Elimination of false tripping caused by inrush current
-
Stable operation under dynamic load conditions
-
Significant reduction in system downtime and field service interventions
-
Improved power integrity (PI) and overall system reliability
-
Enhanced suitability for continuous industrial deployment environments
Applications of eFuse
eFuses are widely used in modern electronics where safety and reliability are critical.
|
Application Area
|
Use Case
|
|
Consumer Electronics
|
Smartphones, laptops, chargers
|
|
Automotive Systems
|
ECUs, battery protection
|
|
Industrial Equipment
|
Motor control, automation systems
|
|
IoT Devices
|
Smart sensors and embedded systems
|
|
Power Management
|
Voltage and current protection circuits
|
How to Choose Between eFuse and Conventional Fuse?
|
Factor
|
Choose eFuse
|
Choose Conventional Fuse
|
|
Budget
|
High-budget systems
|
Low-cost designs
|
|
Reliability
|
High reliability required
|
Basic protection needed
|
|
Maintenance
|
No maintenance preferred
|
Replacement acceptable
|
|
Application
|
Smart electronics, IoT
|
Simple circuits
|
Frequently Asked Questions:
1. What does eFuse do?
Ans: An eFuse is a smart electronic protection device that continuously monitors current in a circuit. When it detects overcurrent, short circuit, or overheating, it quickly limits or cuts off power to protect sensitive components.
2. What is the difference between fuse and eFuse?
Ans: A conventional fuse is a one-time protection device that permanently blows when current is too high, while an eFuse is an electronic, resettable device that provides intelligent protection and can restore operation after a fault is cleared.
3. What are the three types of fuses?
Ans: The three common types of fuses are fast-acting fuses, slow-blow (time-delay) fuses, and resettable fuses (PTC fuses), each designed for different levels of current protection needs.
4. What are the advantages of using eFuse in modern electronic circuits?
Ans: eFuse provides faster protection, precise current limiting, resettable operation, and added safety features like thermal shutdown and overvoltage protection, making circuits more reliable and maintenance-free.
5. Where is eFuse used in real-world applications?
Ans: eFuses are widely used in consumer electronics, automotive systems, industrial automation, IoT devices, and power management circuits where smart and reliable circuit protection is required.
Conclusion
eFuse is a modern and intelligent solution for circuit protection in today’s advanced electronic systems. Compared to conventional fuses, it offers better speed, accuracy, and reliability.
With features like automatic reset, programmable protection, and multi-layer safety, eFuses are becoming an essential part of modern PCB design. Choosing the right protection device depends on application needs, but for smart and reliable systems, eFuse is a strong and future-ready solution.
